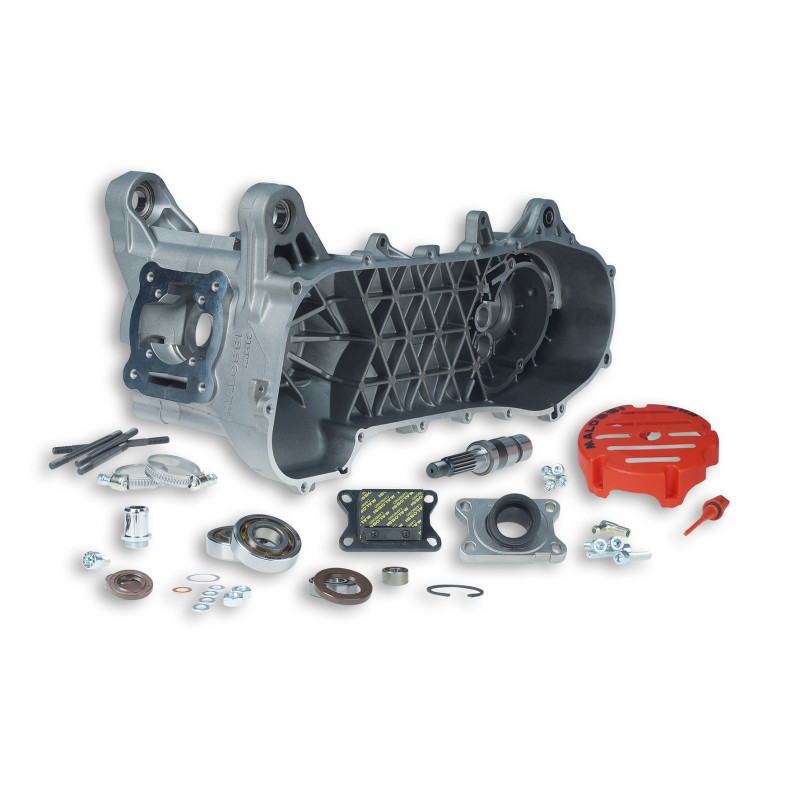

MALOSSI - MHR 94 RC-one COMPL. ENGINE CRANKCASE (for YAMAHA engine)
5716668
€549.45
€467.03
Save 15%
Handling 4-5 days
Crankcase for all scooters that fit a Yamaha Minarelli LC 50 cc engine as original equipment Malossi has achieved the impossible, uniting the world of racing motors for scooters thanks to the RC-One Yamaha-Minarelli. Our technicians have designed the RC-One Yamaha-Minarelli as a platform for bringing together the technical solutions as well as the internal external dimensions with all RCOne Malossi models. The Malossi RC-One housings have been designed to be used only with 94cc Flanged Mount heating units with external studs. The generous pump housing dimensions are finally adequate enough…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
Crankcase for all scooters that fit a Yamaha Minarelli LC 50 cc engine as original equipment
Malossi has achieved the impossible, uniting the world of racing motors for scooters thanks to the RC-One Yamaha-Minarelli.
Our technicians have designed the RC-One Yamaha-Minarelli as a platform for bringing together the technical solutions as well as the internal external dimensions with all RCOne Malossi models.
The Malossi RC-One housings have been designed to be used only with 94cc Flanged Mount heating units with external studs. The generous pump housing dimensions are finally adequate enough for high capacity engine blocks. Malossi C-One uses the same transmission both for Piaggio and Yamaha/ Minarelli scooters, linking two worlds which have always been apart by enhancing and giving value to the best elements of both.
RC-One for Yamaha has been designed to be entirely Plug & Play for all scooters equipped with 50cc Yamaha/Minarelli liquid-cooled motors: no modifications to the chassis are required, and the internal section can accept all products in the Malossi selection for the RC-One range, becoming a revolutionary solution for the development of racing components for ALL scooters.
THE TECHNIQUE
The base of the cylinder has been inclined by 10° compared to the original drive shaft axle - gears.
This innovative development has allowed Malossi technicians to connect the motor attachments in front of the power unit, doing away with one of the biggest Achilles heels once of standard Yamaha/Minarelli motor housings once and for all. A modification underneath the saddle compartment. The base of the Yamaha RC-One has been designed to only house Malossi cylinders with flange mounts and external studs for the MHR Ø 52 Flanged Mount testa rossa family. The advantages of this solution open the door to the possibility of designing entirely unique cylinders.
The reed valve mount has been significantly changed thanks to the latest 3D fluid dynamics simulation software, allowing Malossi technicians to find the ideal ratios and dimensions. The automatic mixer and mechanical water pump have been removed to reduce dispersion as much as possible. The possibility to perform a native install of a Malossi internal ignition rotor has been allowed. As for the bike itself, RC-One for Yamaha is designed exclusively for scooters with rear disc brakes fitted as standard, and is not designed for the alternative use of brake shoes.
The interaxle spacing has been increased, with a consequential increased stability and precision when taking curves, whereas the gearbox housing has been reduced in size by overlapping the gear wheels. The increased interaxle spacing and the internal diameter means that the starter cover designed for Piaggio scooters is required. All RC-One for Yamaha housings are supplied complete with the components required for installation. Indeed, considering the notable technical differences when compared to standard units, Malossi has decided to include a reed valve, covers, and a special wheel pin in order to use the original rear wheel and make the RC-One perfectly interchangeable with Yamaha/Minarelli wheels and hubs. Another optional is the special rear mudguard to protect and keep the carburettor clean, now positioned at the rear.
The new housings have been designed and built in Calderara di Reno at Malossi's new headquarters, one of the most advanced centres for research, development and production of special parts for motors and scooters. These parts were thought of and produced with one objective: to produce the most innovative racing components for scooters ever.
Technical features:
- Crankcase pair, die-cast material in aluminum silicon alloy with high mechanical resistance.
- Crankcases inclusive of bearings 5.150 Kg.
- Crankshaft - clutch shaft wheelbase 270 mm.
- Crankshaft bearings 20 x 47 x 14.
- Oil seals FKM plus PTFE.
- Reed valve VL 18.
- Intake manifold X360 Ø 21 - 28 length 27.
- Cylinder stud bolts material: steel 8.8 UNI EN20898/1.
- Oversized cooling fluid connector: external Ø 18 mm - internal Ø 13,5 mm.
- Pinwheel.
- Wheel axle bearing 20 x 47 x 14.
- Roller gear cover size 16 x 22 x 12.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (18 vehicles)
Aprilia(6)
- AREA 51 50 2T LC
- RALLY 50 2T LC (MINARELLI)
- SR NETSCAPER 50 2T LC (MINARELLI)
- SR RACING 50 2T LC (MINARELLI)
- SR REPLICA 50 2T LC ←1999
- SR STEALTH 50 2T LC (MINARELLI)
Benelli(1)
- 491 SPORT 50 2T LC (MINARELLI)
Beta(1)
- ARK 50 2T LC
Italjet(1)
- DRAGSTER 50 2T LC
MBK(1)
- NITRO 50 2T LC
Malaguti(5)
- F12 DIGIT KAT-PHANTOM 50 2T LC
- F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
- F12 R LC 50 2T LC euro 2
- F12-PHANTOM 50 2T LC
- F15 FIREFOX 50 2T LC
Yamaha(3)
- AEROX 50 2T LC euro 0-1
- AEROX 50 2T LC euro 2
- JOGRR 50 2T LC euro 2
5716668
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Benelli
Beta
Italjet
MBK
Malaguti
Yamaha - Vehicle
- Aprilia AREA 51 50 2T LC
Aprilia RALLY 50 2T LC (MINARELLI)
Aprilia SR NETSCAPER 50 2T LC (MINARELLI)
Aprilia SR RACING 50 2T LC (MINARELLI)
Aprilia SR REPLICA 50 2T LC ←1999
Aprilia SR STEALTH 50 2T LC (MINARELLI)
Benelli 491 SPORT 50 2T LC (MINARELLI)
Beta ARK 50 2T LC
Italjet DRAGSTER 50 2T LC
MBK NITRO 50 2T LC
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
Malaguti F12 R LC 50 2T LC euro 2
Malaguti F12-PHANTOM 50 2T LC
Malaguti F15 FIREFOX 50 2T LC
Yamaha AEROX 50 2T LC euro 0-1
Yamaha AEROX 50 2T LC euro 2
Yamaha JOGRR 50 2T LC euro 2
