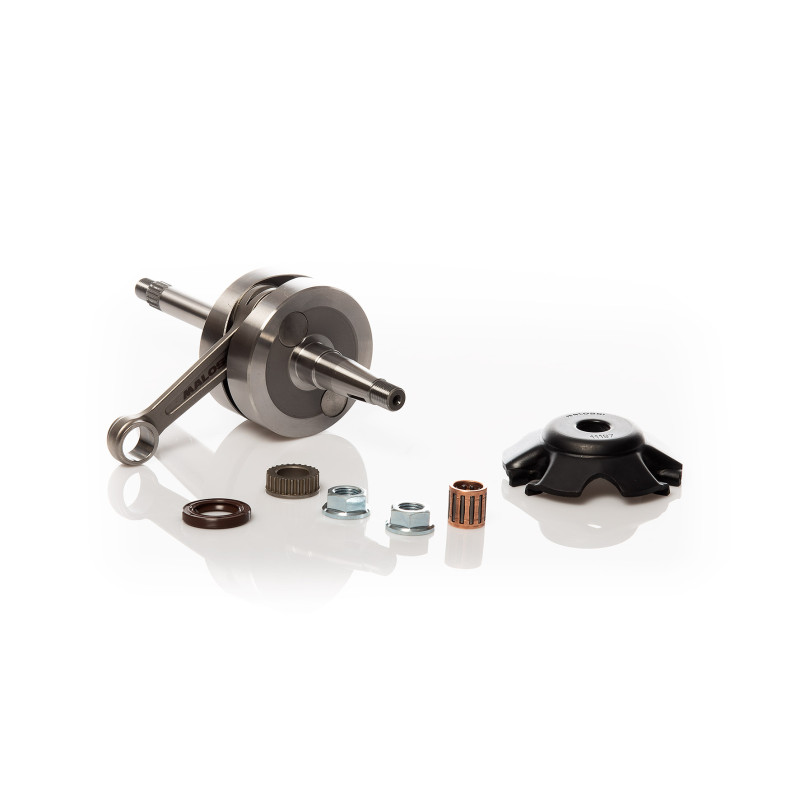

MALOSSI - CRANKSHAFT MHR TEAM pin Ø 13 rod 90 (stroke 44 mm)
5317822
€583.01
€495.56
Save 15%
Handling 4-5 days
R.H.Q. CRANKSHAFT Crankshaft MHR TEAM pin ø 13 rod 90 stroke 44 mm The crankshaft is the heart of the endothermic engine. All aspects of engine performances start from the crankshaft. It is not possible to obtain good engine performance and reliability unless a top-quality crankshaft is fitted. This is why Malossi produces only the very best in crankshafts. IMPROVEMENTS COMPARED TO PREVIOUS VERSION 5316029 Inertial mass increased by 10%. Reinforced connecting rod to withstand higher loads. Crankshaft drive side cross section area increased by 10% with consequent greater resistance. The…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
R.H.Q. CRANKSHAFT
Crankshaft MHR TEAM pin ø 13 rod 90 stroke 44 mm
- The crankshaft is the heart of the endothermic engine.
- All aspects of engine performances start from the crankshaft.
- It is not possible to obtain good engine performance and reliability unless a top-quality crankshaft is fitted.
- This is why Malossi produces only the very best in crankshafts.
IMPROVEMENTS COMPARED TO PREVIOUS VERSION 5316029
- Inertial mass increased by 10%.
- Reinforced connecting rod to withstand higher loads.
- Crankshaft drive side cross section area increased by 10% with consequent greater resistance.
- The diameter of the drive side oil seal has been increased from 19 to 20mm so as to increase the resistance of the shaft.
TECHNICAL SPECIFICATIONS
- Half-shafts material: 18 Ni Cr Mo5.
- Half-shafts with forged monolithic rotating masse.
- Manufactured using high-precision machine tools.
- All components are subjected to 5 heating treatment operations.
- Excellent surface finish for improved reliability.
- Dynamic balancing for speeds of up to 16,000 rpm.
- Coppered connecting rod in forged 18 Ni Cr Mo5, connected to the engine with precision roller bearing for high speeds.
N.B.: Crankcase MODIFICATIONS: BORING.
TO BE COUPLED ONLY WITH cylinder kits 3115385 - 3115883 (3113042/.T0 AFTER FITTING SPACER 0716345).
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (22 vehicles)
Aprilia(4)
- SR (carb.) 50 2T LC 2004→ (PIAGGIO)
- SR R (carb.) 50 2T LC (PIAGGIO)
- SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
- SR Street 50 2T LC euro 2
Derbi(3)
- GP1 50 2T LC
- GP1 OPEN 50 2T LC
- GP1 REVOLUTION 50 2T LC
Gilera(4)
- DNA 50 2T LC
- RUNNER 50 2T LC
- RUNNER SP 50 2T LC 2006→ (C451M)
- RUNNER SP 50 2T LC ←2005
Piaggio(11)
- NRG 50 2T LC
- NRG EXTREME 50 2T LC
- NRG MC2 50 2T LC 1998→
- NRG MC2 50 2T LC ←1997
- NRG MC3 DD 50 2T LC
- NRG Power 50 2T LC euro 4 2018→2020 (CA71M)
- NRG Power DD 50 2T LC
- NTT 50 2T LC
- QUARTZ 50 2T LC
- ZIP SP 50 2T LC 2001→
- ZIP SP 50 2T LC ←2000
5317822
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Derbi
Gilera
Piaggio - Vehicle
- Aprilia SR (carb.) 50 2T LC 2004→ (PIAGGIO)
Aprilia SR R (carb.) 50 2T LC (PIAGGIO)
Aprilia SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
Aprilia SR Street 50 2T LC euro 2
Derbi GP1 50 2T LC
Derbi GP1 OPEN 50 2T LC
Derbi GP1 REVOLUTION 50 2T LC
Gilera DNA 50 2T LC
Gilera RUNNER 50 2T LC
Gilera RUNNER SP 50 2T LC 2006→ (C451M)
Gilera RUNNER SP 50 2T LC ←2005
Piaggio NRG 50 2T LC
Piaggio NRG EXTREME 50 2T LC
Piaggio NRG MC2 50 2T LC 1998→
Piaggio NRG MC2 50 2T LC ←1997
Piaggio NRG MC3 DD 50 2T LC
Piaggio NRG Power 50 2T LC euro 4 2018→2020 (CA71M)
Piaggio NRG Power DD 50 2T LC
Piaggio NTT 50 2T LC
Piaggio QUARTZ 50 2T LC
Piaggio ZIP SP 50 2T LC 2001→
Piaggio ZIP SP 50 2T LC ←2000
