Technical features Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.67 cc Compression ratio: 11.15:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

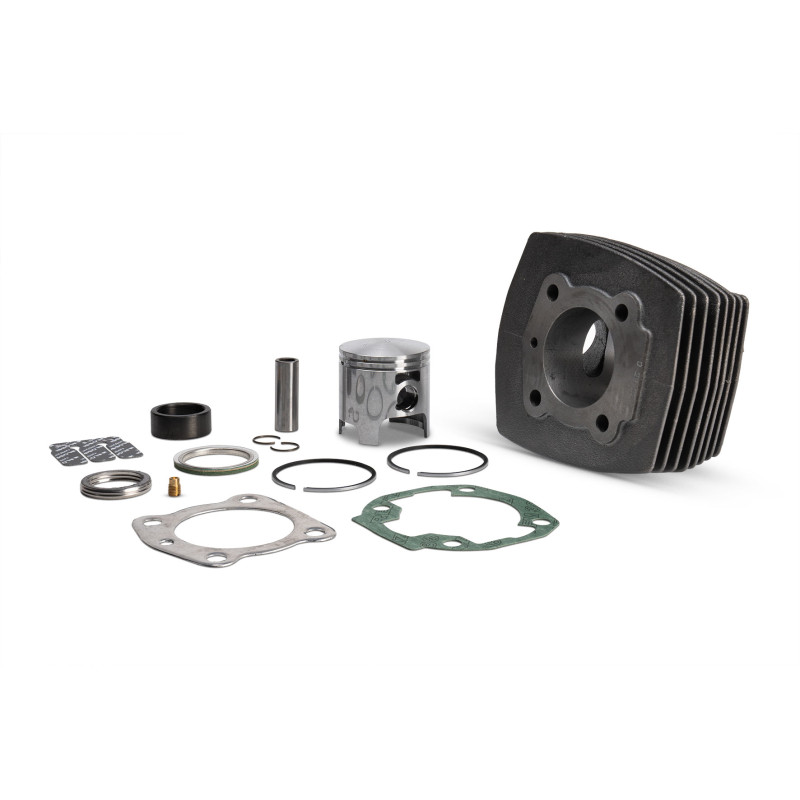

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…

Tecnical data Material: alluminium Cooling: liquid Bore: 39 mm Capacity: 50 cc Compression rati: 11,8:1 Cylinder: primary aluminium alloy with a high content of hardened and tempered silicon Timing system: 5 ports Cylinder liner with special silicon carbide coating Piston with super-light, finned internal structure

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

After much success with Piaggio crankcases, Malossi completes the task: Aluminium Ø47 BIG DEPS Cylinder and Head Kits are now available again! The only CIAO/SI cylinders on the market with a split exhaust port and symmetrical transfer ports!!!! Threaded type exhaust header offers two major advantages: Increased strength and the possibility for replacement due to failure Possibility to increase the exhaust size hence increasing the performance These results are possible due to a smaller decompression valve, compared to the Piaggio original, which is supplied with the kit. Centred,…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
