Availability: 1 In Stock

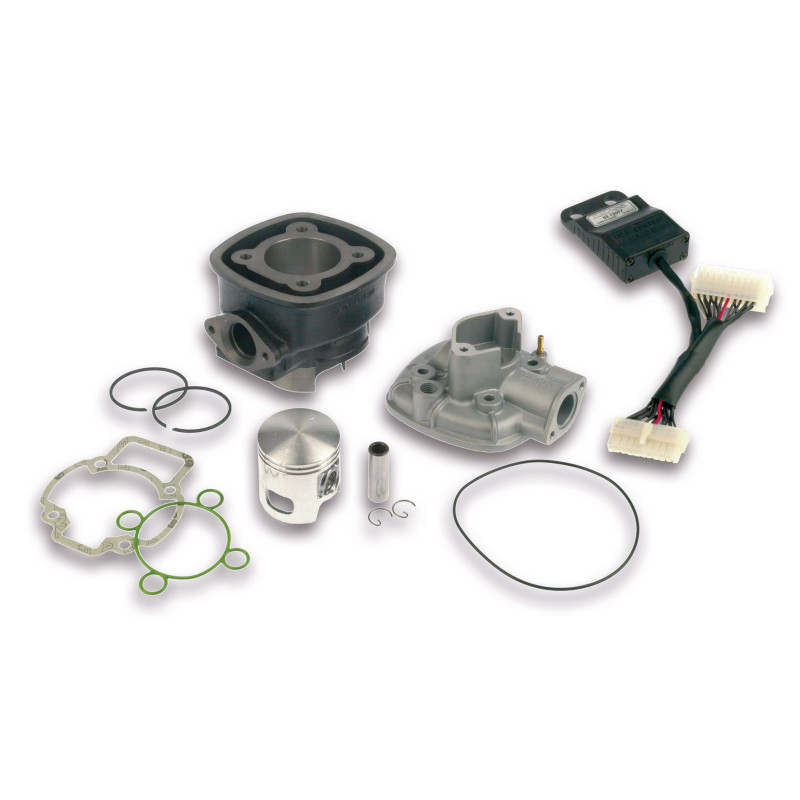

MALOSSI - CAST-I-CYL. KIT Ø 47 pin Ø 12 H2O I-TECH
3112044
€407.85
€346.67
Save 15%
Handling 4-5 days
Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine.
With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters.
Technical features
Cast iron cylinder - Technology
- Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting
- Machining: on numerically controlled high precision machine tools
- Recalculated heat exchange surfaces
- Exhaust and transfer ports designed and tested for maximum thermodynamic performance
- Shape and surface texture dimensional checks
- Cylinder and piston selected for a 100% fit of 0.010-0.005 mm
- Checking of all the seals carried out
Aluminium cylinder - Technology
- Cylinders obtained by gravity die-casting in permanent steel moulds
- Material: hardened and tempered high silicon content primary aluminium alloy
- Machining: on numerically controlled high precision machine tools
- Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances
- Heat exchange surfaces recalculated
- Exhaust and transfer ports designed and tested for maximum thermodynamic performance
- Shape and surface texture dimensional checks
- Cylinder and piston selected for a fit of 0.010-0.005 mm
- Checking of all the seals carried out
Piston
- Material: special aluminium alloy with high silicon content and low thermal expansion
- Machining: on numerically controlled machine tools
- Lightened and strengthened
- Heat exchange surfaces increased
Piston rings
- Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface
Head
- Material: special die-cast aluminium alloy
- Geometry of heat exchange surfaces recalculated and increased (air-cooled models)
- Cooling circuit sections and paths recalculated and resized (liquid-cooled models)
- Machining: numerically controlled high precision machines with diamond tools
- Surface rust prevention treatment
NOTICE:
FOR THE PROPER WORKING OF THE KIT IT IS ABSOLUTELY NECESSARY TO USE THE TC UNIT SUPPLIED IN THE KIT AND TO SUBSTITUTE THE PRIMARY GEARS WITH THE HTQ MALOSSI ONE, TOGETHER WITH THE ORIGINAL EXHAUST SYSTEM OR THE MALOSSI ONE.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (6 vehicles)
Aprilia(2)
- SR DITECH GP1 50 2T LC (PIAGGIO C361M)
- SR R FACTORY 50 2T LC (PIAGGIO C361M)
Gilera(2)
- RUNNER PureJet 50 2T LC 2006→
- RUNNER PureJet 50 2T LC ←2005
Piaggio(2)
- NRG MC3 Purejet 50 2T LC
- NRG Power Purejet 50 2T LC
3112044
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Gilera
Piaggio - Vehicle
- Aprilia SR DITECH GP1 50 2T LC (PIAGGIO C361M)
Aprilia SR R FACTORY 50 2T LC (PIAGGIO C361M)
Gilera RUNNER PureJet 50 2T LC 2006→
Gilera RUNNER PureJet 50 2T LC ←2005
Piaggio NRG MC3 Purejet 50 2T LC
Piaggio NRG Power Purejet 50 2T LC
