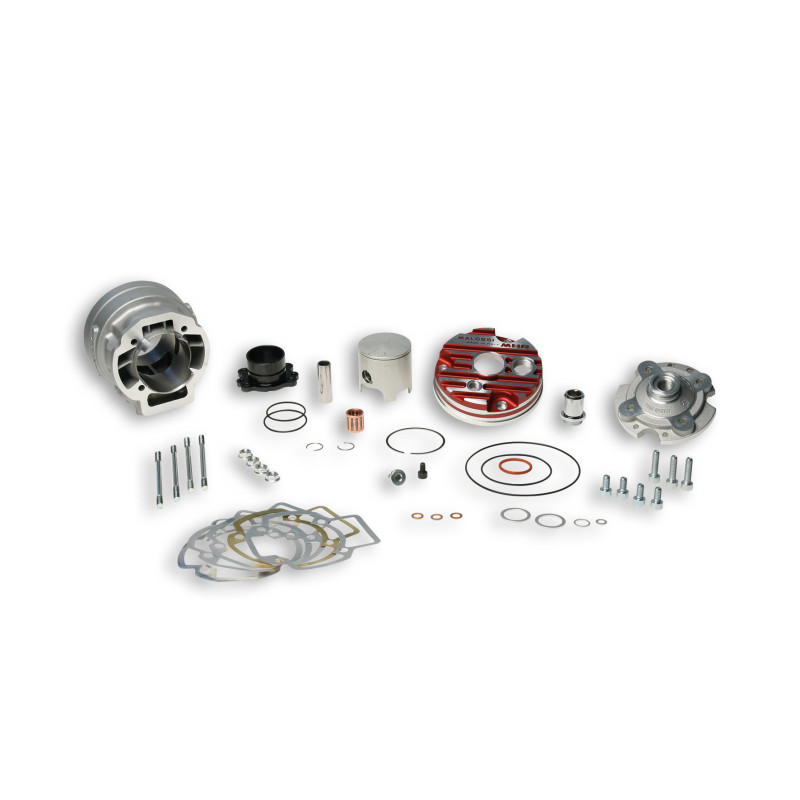

MALOSSI - CYLINDER KIT Ø 52 H2O MHR BIG BORE Testa Rossa
3115385
€474.44
€403.28
Save 15%
Handling 4-5 days
BIG BORE Testa Rossa 94 cc The new generation BIG BORE engine! Stud bolts, only for liquid-cooled scooters (7 ports and exhaut crossbar - piston with 1 segment - modular head - required boring of original case or C-One Malossi case - engine shaft with connecting rod different from the original). Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases and, with…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
BIG BORE Testa Rossa 94 cc
The new generation BIG BORE engine!
Stud bolts, only for liquid-cooled scooters (7 ports and exhaut crossbar - piston with 1 segment - modular head - required boring of original case or C-One Malossi case - engine shaft with connecting rod different from the original).
Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases and, with their unprecedented capacity of 94 cc, they allow the BIG BORE family to make a significant leap forward.
Externally almost indistinguishable from their flanged counterparts, BIG BORE Testa Rossa cylinders feature a stud bolt framework compatible both with original engines and with the C-One Malossi case. Even inside they are totally similar to Flanged Mounts, thanks to the renowned configuration with seven ports and dual exhaust port, with the only difference given by the limits set by the inner passage of the bolts that affects the size and development of the exhaust.
The head is once again modular, with new internal profiles specifically designed to increase the torque and feeling of the engine, now much brighter and even more progressive. The head cover is made of forged aluminium, red anodized and lathed in high precision CNC machines.
TECHNICAL FEATURES
CYLINDER KIT | COOLING | TIMING SYSTEM | MATERIAL | BORE mm | STROKE mm | CAPACITY mm | ADVANCE | PISTON RING CLEARANCE mm | SQUISH | COMPRESSION RATIO | SPARK PLUG |
3115374 | H2O | 7 ports | Aluminium | 52 | 44 | 93,4 | 16° | 0,15 | 0,55 | 01:14.6 | 6314455.S0 IRIDIUM IW 34 |
3115385 | H2O | 7 ports | Aluminium | 52 | 44 | 93,4 | 16° | 0,15 | 0,55 | 01:14.6 | 6314455.S0 IRIDIUM IW 34 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (22 vehicles)
Aprilia(4)
- SR (carb.) 50 2T LC 2004→ (PIAGGIO)
- SR R (carb.) 50 2T LC (PIAGGIO)
- SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
- SR Street 50 2T LC euro 2
Derbi(3)
- GP1 50 2T LC
- GP1 OPEN 50 2T LC
- GP1 REVOLUTION 50 2T LC
Gilera(4)
- DNA 50 2T LC
- RUNNER 50 2T LC
- RUNNER SP 50 2T LC 2006→ (C451M)
- RUNNER SP 50 2T LC ←2005
Piaggio(11)
- NRG 50 2T LC
- NRG EXTREME 50 2T LC
- NRG MC2 50 2T LC 1998→
- NRG MC2 50 2T LC ←1997
- NRG MC3 DD 50 2T LC
- NRG Power 50 2T LC euro 4 2018→2020 (CA71M)
- NRG Power DD 50 2T LC
- NTT 50 2T LC
- QUARTZ 50 2T LC
- ZIP SP 50 2T LC 2001→
- ZIP SP 50 2T LC ←2000
Frequently asked questions
Faq
-
Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?
This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.
