Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

CYLINDER KIT MHR modular head The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance. CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain…

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is! Complete cylinder I-TECH 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control.…

The MHR REPLICA line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of Malossi's many years of…

VESPA NEVER DIES Aluminium cylinder kit Ø 68,5 Afurther upgrade for the timeless Ø 68.5 cylinder kit! 1983 The aluminium cylinder with 68,5 mm diameter - turning point in Vespa tuning - was born. Made of Nicasil aluminium, with super light piston and 1.2 mm semi trapezoidal rings, it becomes a legend, a real musthave for all Vespa fans. 2008 The cylinder is updated, by adding the head with hemispherical combustion chamber and central spark plug. 2013 The cylinder, always made of Nicasil aluminium, has been completely changed concerning both main and rear ports and exhaust port as well.…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

Technical data Material: alluminium Cooling: air Bore: 42 mm Stroke: 43 mm Capacity 60 Compression ratio: 10:01 Timing system: 4 ports

Technical data Material: alluminium Cooling: air Bore: 45,5 mm Stroke: 39,1 mm Capacity 65 Compression ratio: 11.8:1 Timing system: 6 ports

CVF2 CYLINDER TECHNICAL FEATURES ALUMINIUM CYLINDER Cylinders obtained by gravity die-casting in permanent steel moulds. Material: hardened and tempered high silicon content primary aluminium alloy. Machining: on numerically controlled high precision machine tools. Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tested for maximum thermodynamic performance. Dimensional and surface finish quality control…

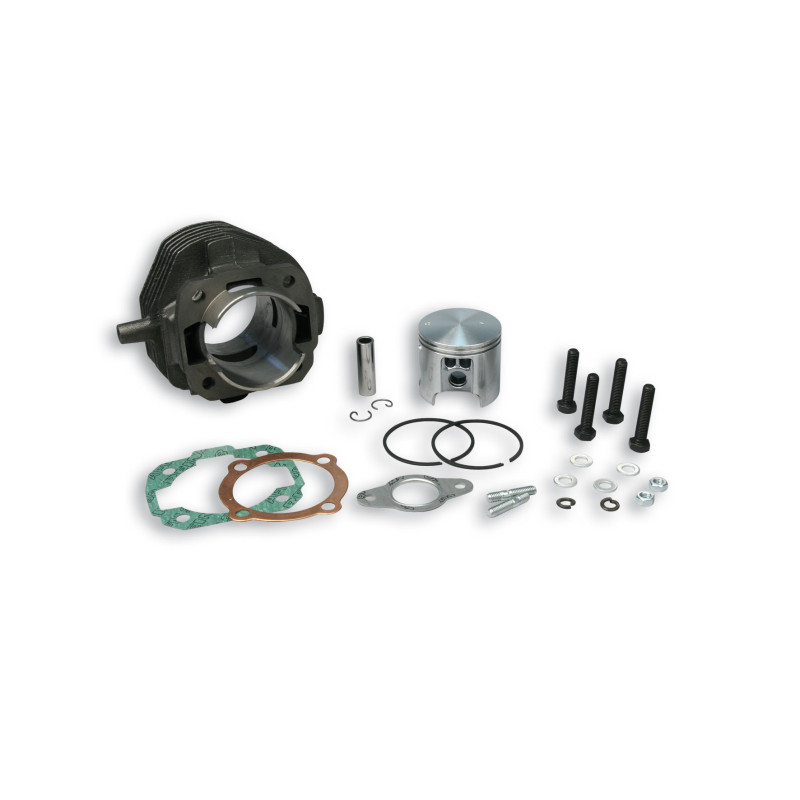

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Technical data Material: alluminium Cooling: liquid Bore: 47 mm Stroke: 37,8 mm Capacity 65 Compression ratio: 13:01 Timing system: 6 ports
