The MHR REPLICA line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of Malossi's many years of…

CYLINDER KIT Ø 63 ALUMINIUM completely new cylinder kit has been created, designed overall to obtain the maximum result in terms of performance and durability. Every aspect of the system has been studied to maximise the mechanical resistance, the fluid dynamics and improve combustion: the result is a top-of-the-range kit in terms of construction quality and technological development. TECHNICAL FEATURES Cylinder Built from scratch, in high-strength aluminium alloy and cylinder sleeve with nickel-chromium coating. Consisting of an even thickness central core around the cylinder sleeve and the…

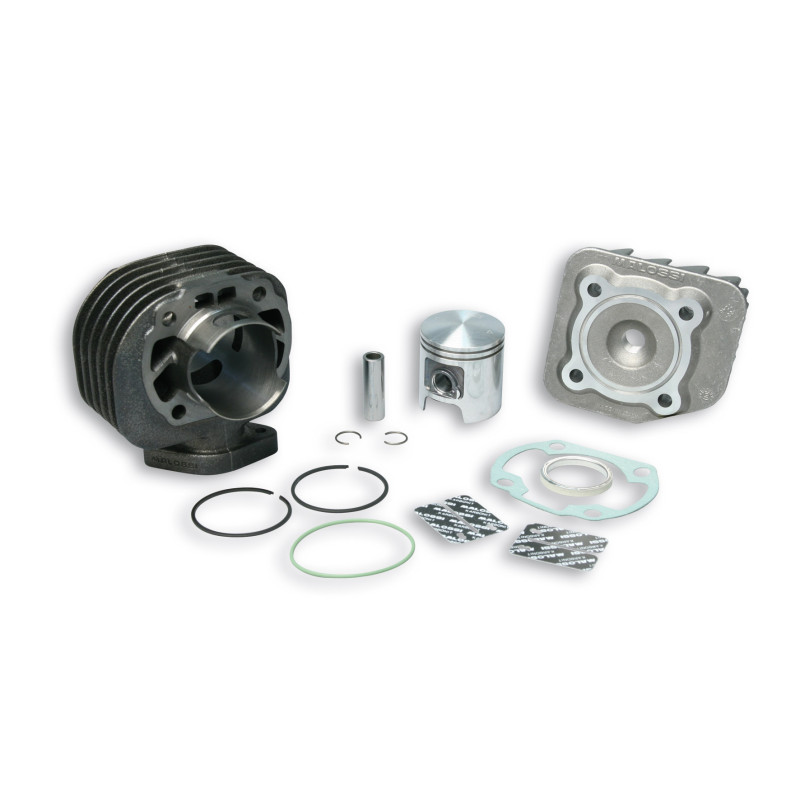

CAST-IRON CYLINDER KITS Malossi is glad to present the new line of cylinder kits which have been designed for the latest generation scooters. They are unique tools able to defeat the traffic black-out of our cities. They are highly reliable and they have an exceptional torque. They have been studied to support a prolonged stress and can offer high accelerations even on highly pendent roads. They do not know neither fatigue nor wear. Technical data Material: cast iron Cooling: air Bore: 45,5 mm Stroke: 39,3 mm Capacity 64 Compression ratio: 10,5:01 Timing system: 7 ports Cylinders made of…

Technical features Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 70 mm; Stroke 48.6 mm; Displacement 187.6; Compression ratio 11.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

The cylinder has a close deck structure paired with a redesigned modular head. With this cylinder, the engine benefits from reduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in increased engine efficiency, along with a notable reduction in noise and vibrations . The exhaust system accompanying the 100 cc kit is the result of targeted engineering, designed to enhance performance and perfect the fluid dynamics of the new Malossi cylinder. Technical features Cooling: H2O Porting: 7 transfer ports Material:…

CAST-I-CYLINDER KIT Ø 63 CYLINDER The cylinder has a bore of 63 mm with a displacement of 178 cc and completely revised internal fluid dynamics. New port mapping allows for a high degree of coupling both with linked sumps and with completely new sumps, and includes a special profiling designed to optimise flow and obtain significant increases in performance, without the need to carry out any additional work on the vehicle. TRANSFER PORTS The transfer ports have a profile designed to correctly orientate the incoming flow and obtain a high degree of turbulence, thus ensuring improved combustion…
