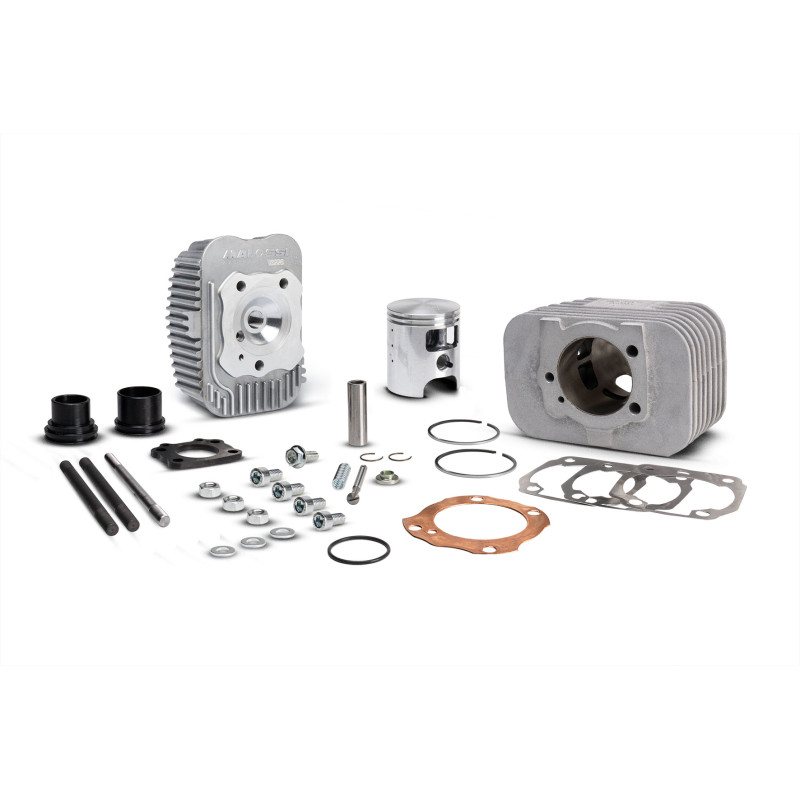

MALOSSI - ALUMIN-CYL. KIT Ø 47 pin Ø 10 BIG DEPS PIAGGIO - ITALJET 50 cc
3118052
€340.63
€289.54
Save 15%
Handling 4-5 days
After much success with Piaggio crankcases, Malossi completes the task: Aluminium Ø47 BIG D.E.P.S. Cylinder and Head Kits are now available again! The only CIAO/SI cylinders on the market with a split exhaust port and symmetrical transfer ports!!!! Threaded type exhaust header offers two major advantages: Increased strength and the possibility for replacement due to failure Possibility to increase the exhaust size hence increasing the performance These results are possible due to a smaller decompression valve, compared to the Piaggio original, which is supplied with the kit. Centred,…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
After much success with Piaggio crankcases, Malossi completes the task: Aluminium Ø47 BIG D.E.P.S. Cylinder and Head Kits are now available again!
The only CIAO/SI cylinders on the market with a split exhaust port and symmetrical transfer ports!!!!
Threaded type exhaust header offers two major advantages:
- Increased strength and the possibility for replacement due to failure
- Possibility to increase the exhaust size hence increasing the performance
These results are possible due to a smaller decompression valve, compared to the Piaggio original, which is supplied with the kit.
Centred, hemispherical combustion chamber.
Malossi aluminium BIG D.E.P.S. cylinder kits are the best balance between component performance and component durability! The BIG D.E.P.S. are designed and manufactured with the specific objective of obtaining high combustion efficiency, long life, and a reliability that suits the Malossi name.
CYLINDER
Made of the same high-strength aluminium alloy as our racing cylinders and nickel-chrome coating. The central core profile has been revamped around the ports to increase the heat exchange surface and improve the air cooling flow, allowing the fresh air to enter the combustion chamber at optimal temperature and pressure conditions, thus improving the volumetric efficiency of the engine. There is a support surface in the front part of the cylinder that has been machined and finished with high-precision tools, with four threaded holes required to connect it to the pipe assembly.
The most significant innovation is the brand-new design of the internal ports, specifically developed to flush the cylinder, maximising the power to the correct running speed. This has led to a significant increase in performance over the entire engine operating range, improving the performance and torque output, without sacrificing greater temperature control in the combustion chamber, thus preventing overheating.
CIAO 3118052
CYLINDER KIT
The new 2018 range features improved interchangeability, producing a series with pistons with Ø 10 pin (if the user wants to keep his own standard crankshaft or mount the Malossi 53 7313) and a series with pistons with Ø 12 pin for highstrength crankshafts such as the Malossi 53 1802 RHQ.

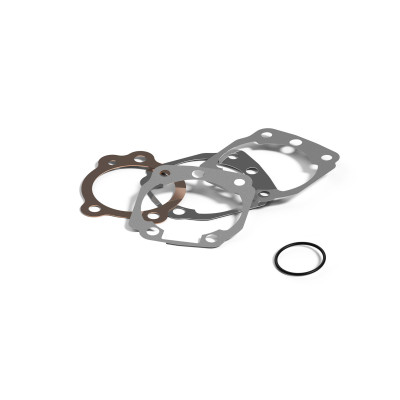

GASKETS
The gasket set comes with a new 0.5 mm head gasket, no longer in aluminium but in ANNEALED COPPER: a material with a higher thermal transmission coefficient than aluminium, allowing a greater quantity of heat to be transmitted from the combustion chamber to the cooling fins and thus, maintaining more control over temperatures in the chamber. A greater permeability to the flow of heat also prevents the risk of the gasket overheating, resulting in improved durability, also avoiding oil leakage from the head. The basic gasket has been designed to fit to the new cylinder shape, dictated by the revamped ports and comes in three different thicknesses, allowing the user to choose compression ratios other than those recommended and thus, obtain different engine calibrations based on use and personal experience.
EXHAUST MANIFOLD
The connection to the silencer is via a fitting fixed by a flange, connected to a specially designed cylinder profile, and secured with four screws. By adopting this solution, just like with racing cylinders, it was possible to solve all the problems of loosening due to vibrations, regardless of the power reached. The new flange, made of burnished steel, has two spring anchoring flaps to connect hand-crafted silencers without having to make holes in the cylinder fins. The O-ring, placed on the connecting wall of the fitting, creates an excellent seal and prevents any oil residue from leaking out of the cylinder exhaust. Each kit comes with two different pipes: one for assembling the original silencers or with the same coupling size and a bigger one both inside and out, to create a bottleneck-free exhaust which, when connected to high-performing silencers, allows you to achieve greater power and torque.
Technical data
- Split exhaust port
- Symmetrical transfer ports
- Centred, hemispherical combustion chamber
- Smaller decompression valve
- Six transfer porting system
- Gravity casted cylinders utilizing permanent steel molds
- Hardened and tempered high silicon aluminium alloy
- Machined on numerically controlled high precision machining centres
- Cylinder liners are silicon carbide coated with a galvanic nickel matrix and diamond cross-honed to achieve very tight tolerances
- Heat exchange surfaces redesigned
- Exhaust and transfer ports designed and tested for maximum thermodynamic performance
- High strength cast iron rings, wear resistant chrome coated, ground and lapped
- Quality inspected for surface roughness and form
- Cylinder/ Piston matched sets selected for 0.010-0.005 mm fit
- 100% pressure checked
- 2 exhaust connectings: oversized Ø 27 - standard Ø 22
Cylinder and head kit BIG D.E.P.S.: the perfect match for Malossi's crankcase!
| Code | 3118052 Ø 47 mm |
| Stroke | 43 mm |
| Capacity | 74,6 |
| Compression ratio | 13.2 |
| Cooling | Air |
| N° ports | 6 |
| Spark plug SPORT | IRIDIUM IW 24 |
| Spark plug MHR | IRIDIUM IW 27 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (7 vehicles)
Piaggio(7)
- BOSS 50 2T
- BOXER 50 2T
- BRAVO 50 2T
- CIAO 50 2T
- CIAO PX 50 2T
- GRILLO 50 2T
- SI 50 2T
Frequently asked questions
Faq
-
Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?
This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.
3118052
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Piaggio
- Vehicle
- Piaggio BOSS 50 2T
Piaggio BOXER 50 2T
Piaggio BRAVO 50 2T
Piaggio CIAO 50 2T
Piaggio CIAO PX 50 2T
Piaggio GRILLO 50 2T
Piaggio SI 50 2T
Components and spare parts
Availability: 1 In Stock

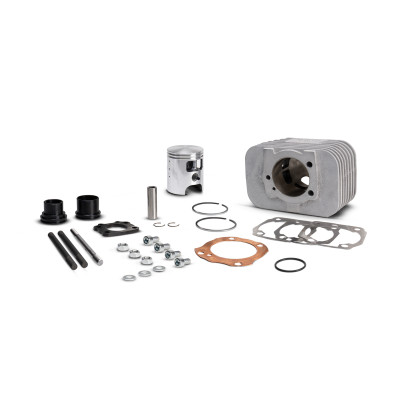

After much success with Piaggio crankcases, Malossi completes the task: Aluminium Ø 47 BIG DEPS Cylinder and Head Kits are now available again! The only CIAO/SI cylinders on the market with a split exhaust port and symmetrical transfer ports!!!! Threaded type exhaust header offers two major advantages: Increased strength and the possibility for replacement due to failure. Possibility to increase the exhaust size hence increasing the performance. These results are possible due to a smaller decompression valve, compared to the Piaggio original, which is supplied with the kit. Centred,…
Availability: 3 In Stock
Availability: 3 In Stock
Availability: 3 In Stock
16 other products in the same category:
Availability: Out of stock
Availability: Out of stock
Availability: Out of stock
The cylinder has a close deck structure paired with a redesigned modular head. With this cylinder, the engine benefits from reduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in increased engine efficiency, along with a notable reduction in noise and vibrations . The exhaust system accompanying the 100 cc kit is the result of targeted engineering, designed to enhance performance and perfect the fluid dynamics of the new Malossi cylinder. Technical features Cooling: H2O Porting: 7 transfer ports Material:…
Availability: 3 In Stock
COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…
Availability: 3 In Stock

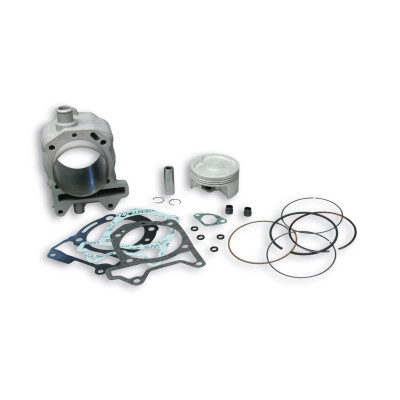

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 75.5 mm; Stroke 48,6 mm; Displacement 218; Compression ratio 12.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…
Availability: 3 In Stock
CYLINDER KIT Ø 63 ALUMINIUM completely new cylinder kit has been created, designed overall to obtain the maximum result in terms of performance and durability. Every aspect of the system has been studied to maximise the mechanical resistance, the fluid dynamics and improve combustion: the result is a top-of-the-range kit in terms of construction quality and technological development. TECHNICAL FEATURES Cylinder Built from scratch, in high-strength aluminium alloy and cylinder sleeve with nickel-chromium coating. Consisting of an even thickness central core around the cylinder sleeve and the…
Availability: 3 In Stock
Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
Availability: 3 In Stock
Availability: 1 In Stock
After much success with Piaggio crankcases, Malossi completes the task: Aluminium Ø 47 BIG DEPS Cylinder and Head Kits are now available again! The only CIAO/SI cylinders on the market with a split exhaust port and symmetrical transfer ports!!!! Threaded type exhaust header offers two major advantages: Increased strength and the possibility for replacement due to failure. Possibility to increase the exhaust size hence increasing the performance. These results are possible due to a smaller decompression valve, compared to the Piaggio original, which is supplied with the kit. Centred,…
Availability: 3 In Stock

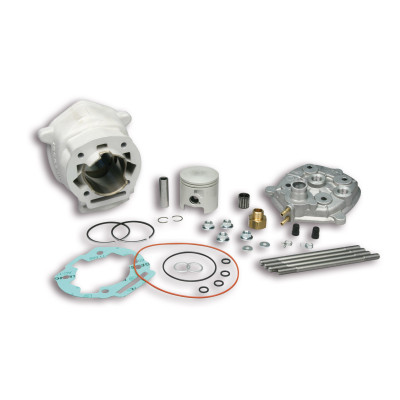

The MHR REPLICA line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of Malossi's many years of…
Availability: 1 In Stock
The cylinder has a close deck structure paired with a redesigned modular head. The volumes and flows have been revolutionized , to unleash all the power this cylinder has to offer. No compromises: a carburetor between 30 and 34 mm is necessary. To ensure perfect synergy and maximize on-road performance, the 100cc kit should be paired with our crankshaft , which has been renewed with a 100 mm connecting rod . With this cylinder, the engine benefits from creduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in…
Availability: 3 In Stock
CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…
Availability: 3 In Stock

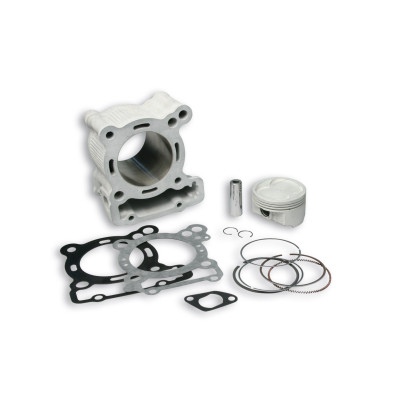

Technical features Cylinder 125 cc: Bore: Ø 67 mm Stroke: 47 mm Displacement: 166 200 cc: Bore: Ø 67 mm Stroke: 58 mm Displacement: 200 Compression ratio: 12:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3…
