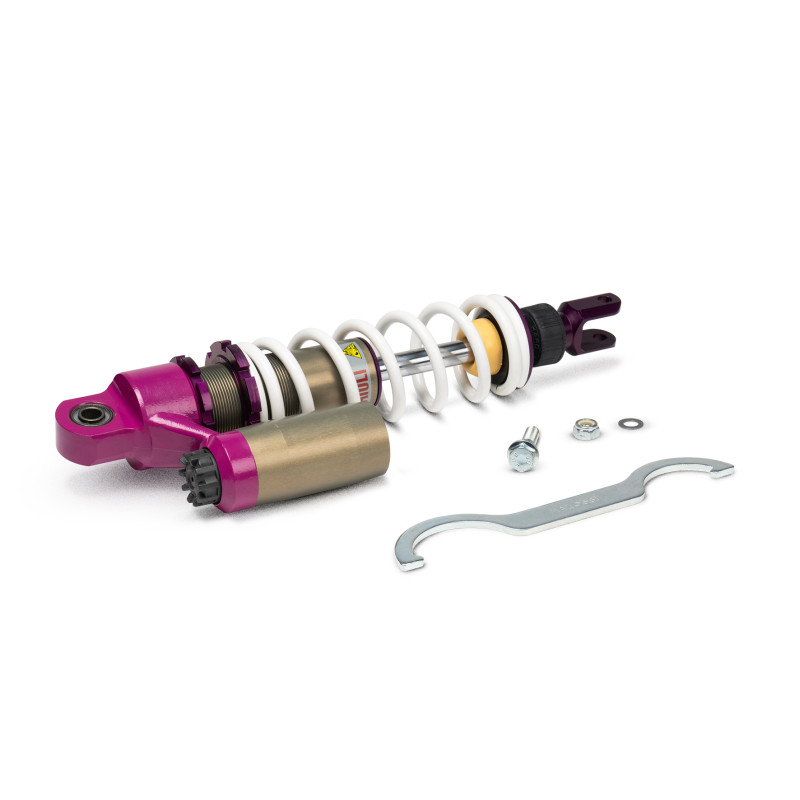

MALOSSI - Rear shock absorber rs24/10
4613081
€524.44
€445.78
Save 15%
Handling 4-5 days
SHOCK ABSORBERS RS 24/10 Malossi srl is glad to present to the pubblic a new version of RS 24 shock absorbers for scooters. This new shock absorber is designed and built especially for racing and it is at the top of shock absorbers specific for scooter. It has been designed on the bases of the indications gave directly by Malossi techical department to Paioli and later it has been tested for a long time on Italian racing tracks. These shock absorbers have an external compensation tank for the liquids working inside it; in fact, the oil inside the shock absorber is connected by a high…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
SHOCK ABSORBERS RS 24/10
Malossi srl is glad to present to the pubblic a new version of RS 24 shock absorbers for scooters.
This new shock absorber is designed and built especially for racing and it is at the top of shock absorbers specific for scooter.
It has been designed on the bases of the indications gave directly by Malossi techical department to Paioli and later it has been tested for a long time on Italian racing tracks.
These shock absorbers have an external compensation tank for the liquids working inside it; in fact, the oil inside the shock absorber is connected by a high resistance tube to the tank where there is a revolving diaphragm as partition between the oil and the high pression nitrogen gas.
Techical features
- Type: oil-pneumatic shock absorber with parted compensation tank.
- Use: Scooter for competition.
- Shock absorber rod Ø 14 mm in 38 NiCrMo4UNI 7845 steel hardered and tempered with 25-30 micon hard chrome layer (mm) (surface hardness of untreated shaft HRC 55/60).
- Piston Ø 36 mm with two indipendent laminar packs (one in compression, one in expansion).
- New laminar system in music steel for extremely precise calibration.
- LUBRIFLON - PTFEB 70 piston guide shoe (bronze-loaded modified compound).
- Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped low-carbon steel with subequent impregnation and coating with a PT-FE + FB mixture).
- SEALTHANE 9345 grade polyester resin scraper ring.
- Micrometric regulation of spring preloading by means of ring nuts.
- 24-position adjustment of hydraulic braking in expansion.
- 10-positions adjustment of hydraulic braking in compression.
- Special low-viscosity oil, practically unaffected by tempertaure changes.
- External compensation tank which allows an increasing of the quantity of the inner liquids. If you consider the above described technical features, you can realise that these special shock absorbers are the best technological expression today available for the public.
| Code | Inter-axis mm | |
| 4612949 | rear | 285 |
| 4613081 | rear | 315 |
| 4614223 | rear | 330 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (6 vehicles)
MBK(1)
- NITRO 50 2T LC
Yamaha(5)
- AEROX 4 50 ie 4T LC euro 2 (A326E)
- AEROX 4 50 ie 4T LC euro 4 2018→ (A333E)
- AEROX 50 2T LC euro 0-1
- AEROX 50 2T LC euro 2
- NEO'S 4 50 ie 4T LC euro 4 2019→
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4613081
Data sheet
- Country of origin
- Italy
- Vehicle brand
- MBK
Yamaha - Vehicle
- MBK NITRO 50 2T LC
Yamaha AEROX 4 50 ie 4T LC euro 2 (A326E)
Yamaha AEROX 4 50 ie 4T LC euro 4 2018→ (A333E)
Yamaha AEROX 50 2T LC euro 0-1
Yamaha AEROX 50 2T LC euro 2
Yamaha NEO'S 4 50 ie 4T LC euro 4 2019→
Components and spare parts
Availability: 3 In Stock
In order to further customize and improve RS 24/10-R shock absorbers, two new even softer springs are available from today on!
Availability: 3 In Stock
16 other products in the same category:
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 3 In Stock

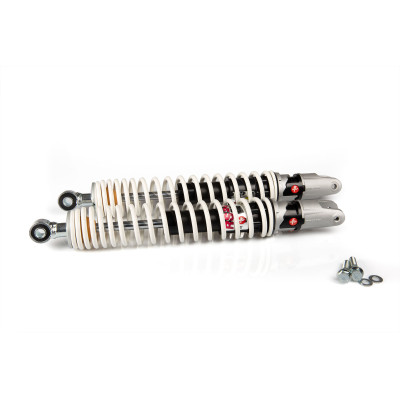

TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…
