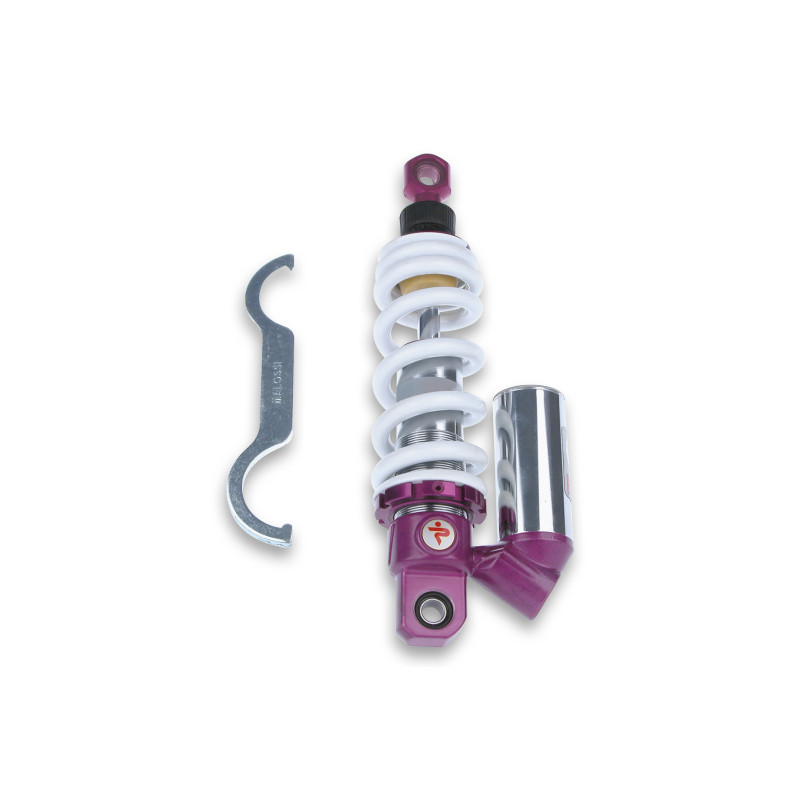

MALOSSI - % REAR SHOCK ABSORBER RS24 - wheelbase 290 mm
4612962
€258.64
€219.84
Save 15%
Handling 4-5 days
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
| Code | Inter-axis mm | Stroke mm | |
| 46 7588 | rear | 267 | 42 |
| 46 7900 | front | 205 | 60 |
| 46 8308 | rear | 294 | 65 |
| 4611641 | rear | 410 | 85 |
| 4612962 | rear | 290 | 54 |
| 4613598 | rear | 316 | 45 |
| 4614615 | front | 257 | 90 |
4615218 | rear | 336 | 86 |
4620074 | rear | 336 | 86 |
4617065 | rear | 360 | 70 |
4617076 | front | 275 | 58 |
| 4617558 | front | 227 | 75 |
| 4619983 | front | 225 | 60 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (7 vehicles)
Aprilia(2)
- RX 50 2T LC 2007→ (DERBI D50B0)
- SX 50 2T LC 2007→ (DERBI D50B0)
Derbi(4)
- SENDA 50 2T LC (EBE050 - EBS050)
- Senda EVO SM 50 2T LC (D50B0)
- Senda X-RACE R - X-RACE SM 50 2T LC (D50B0)
- Senda X-TREME R - X-TREME SM 50 2T LC (D50B0)
Gilera(1)
- RCR - SMT 50 2T LC (DERBI D50B0)
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4612962
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Derbi
Gilera - Vehicle
- Aprilia RX 50 2T LC 2007→ (DERBI D50B0)
Aprilia SX 50 2T LC 2007→ (DERBI D50B0)
Derbi SENDA 50 2T LC (EBE050 - EBS050)
Derbi Senda EVO SM 50 2T LC (D50B0)
Derbi Senda X-RACE R - X-RACE SM 50 2T LC (D50B0)
Derbi Senda X-TREME R - X-TREME SM 50 2T LC (D50B0)
Gilera RCR - SMT 50 2T LC (DERBI D50B0)
