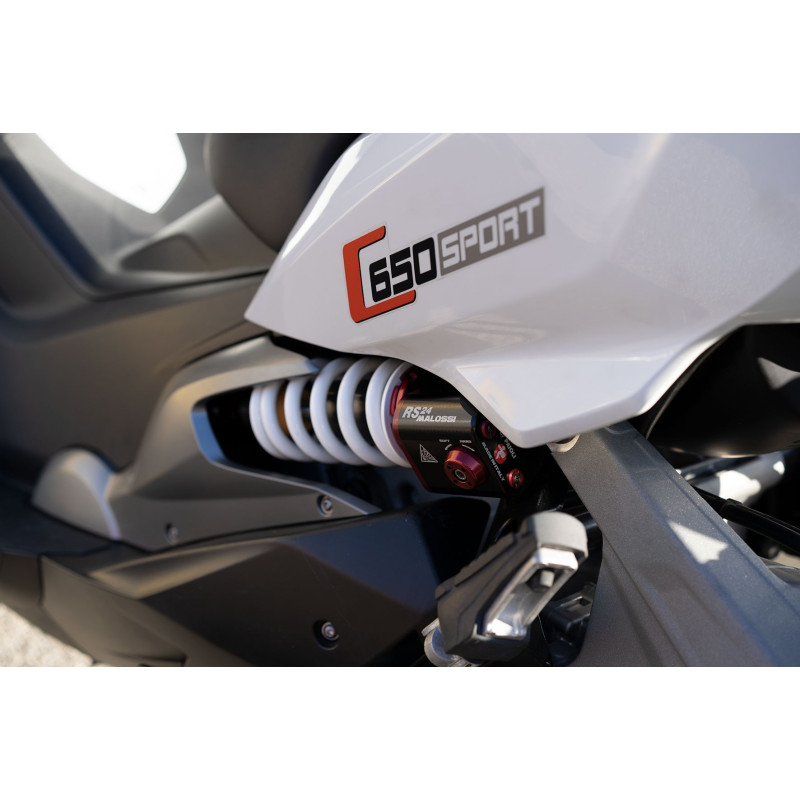

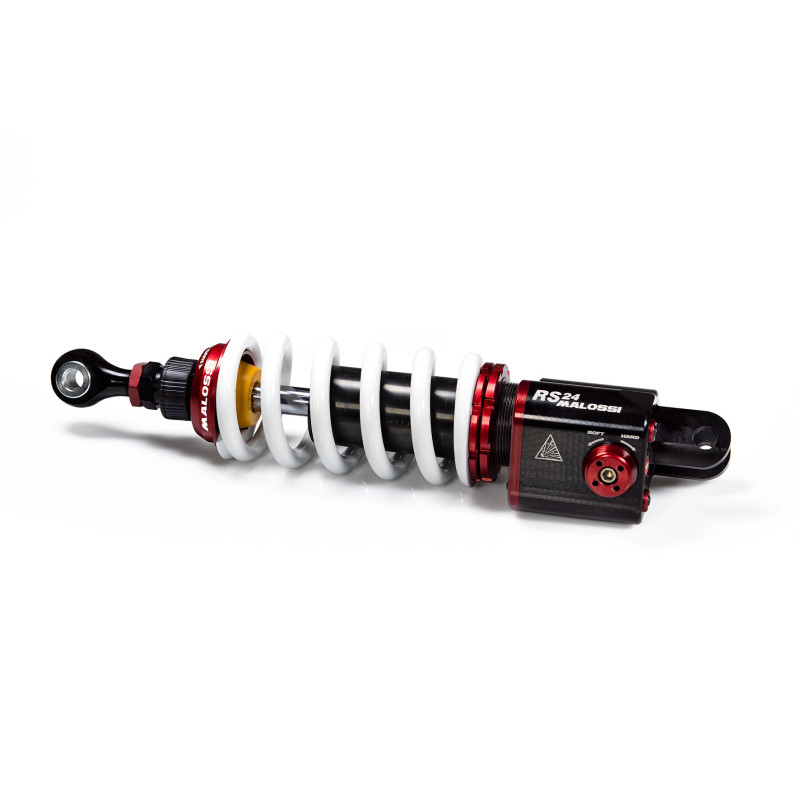

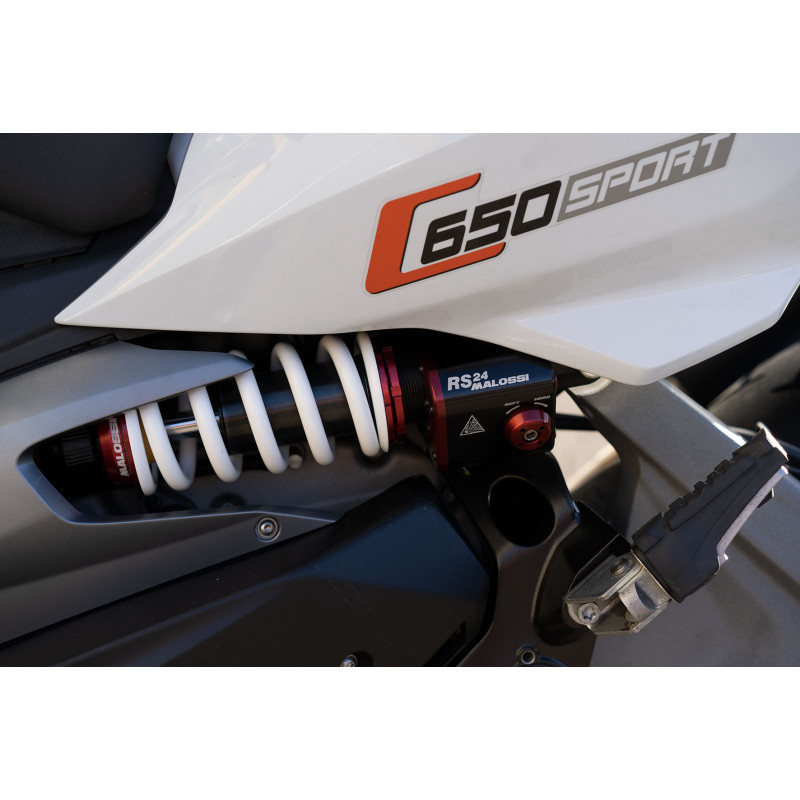

MALOSSI - REAR SHOCK ABSORBER RS24/10-R - wheelbase 354 mm
4618360
€589.57
€501.14
Save 15%
Handling 4-5 days
RS24/10-R shock absorbers Hydraulic pneumatic shock absorbers with variable suspension. The RS24/10-R rear shock absorber for maxi scooters consists of a single body crossed by a newly-designed hydraulic circuit that allows all adjustments to be integrated while maintaining the same dimensions as the original shock absorber, without reducing the overall dimensioning of the hydraulic brake. The shock absorber is fitted with no less than 4 adjustment devices: 1 - Wheelbase adjustment device. Turn to modify the height of the rear axle - 2mm + 8mm with respect to the original. 2 - Extension…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
RS24/10-R shock absorbers
Hydraulic pneumatic shock absorbers with variable suspension.
The RS24/10-R rear shock absorber for maxi scooters consists of a single body crossed by a newly-designed hydraulic circuit that allows all adjustments to be integrated while maintaining the same dimensions as the original shock absorber, without reducing the overall dimensioning of the hydraulic brake.
The shock absorber is fitted with no less than 4 adjustment devices:
1 - Wheelbase adjustment device.
Turn to modify the height of the rear axle - 2mm + 8mm with respect to the original.
2 - Extension adjustment to change the brake during re-opening of the shock absorber after being compressed .
3 - Adjustment of the spring pre-load to increase or decrease the “initial” load of the shock absorber and consequently to determine the greater or lesser initial rigidity of the system, i.e. the effort required to start the suspension by adjusting the agility, manoeuvrability and stability of the vehicle.
ATTENTION: Adjustment of the spring pre-load must be performed according to the extension, the weight of the vehicle and the rider with possible passengers. 4 - Compression adjustment to control the brake when closing the shock absorber and varying of the behaviour of this in relation to the unevenness of the ground. It is possible to use a more rigid but more stable sporting set-up or a gentler more comfortable touring configuration. The regulation acts at low shock absorbing speeds, that is during operation of the shock absorber on bends or when traversing slightly accentuated holes. At high speeds, instead, when, for example, pronounced potholes are present, perhaps in a completely straight line, a brake consists of a 20mm sintered piston with a specially calibrated valve pack.
The RS24/10-R is equipped with two nitrogen tanks for rod compensation. This system is used to completely modify the load curves depending on the pressure of each chamber, that is the handling modes during compression and extension, and guarantees greater compactness to the shock absorber with respect to the system with a single external tank, reduced friction and greater dispersion of the heat produced by functioning of the system.
- Body and fittings in anodised ergal, internal components in hard anodised ergal, 16 mm rod with thick hard chrome
- Double acting 40 diameter piston (compression and extension)
- Diaphragms in technical material with low friction and high durability
- Neoprene pad for Yamaha T Max 530, Kymco AK 550
- Polyurethane pad for BMW C 600/650
- Low viscosity index oil to minimise variations in hydraulic brake behaviour according to temperature
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (2 vehicles)
BMW(2)
- C Sport 600 ie 4T LC euro 3 ←2015
- C Sport 650 ie 4T LC euro 4 2016→ (652EA)
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4618360
Data sheet
- Country of origin
- Italy
- Vehicle brand
- BMW
- Vehicle
- BMW C Sport 600 ie 4T LC euro 3 ←2015
BMW C Sport 650 ie 4T LC euro 4 2016→ (652EA)
16 other products in the same category:
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 1 In Stock
RS 3 Sport oil-pneumatic shock absorber Each shock absorber has been designed for a specific scooter or moped with regard to both size and operation. This shock absorber features: Excellent operation Very long life thanks to the use of high-quality materials Extremely low coefficient of friction Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C48 steel-hardened and tempered Piston in steel and sintered bronze New laminar system in Swedish steel LUBRIFLON-PTFE B70 piston guide shoe (bronze-loaded modified compound) Sliding on DU GUIDE bush (compound obtained by…
Availability: 1 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 1 In Stock

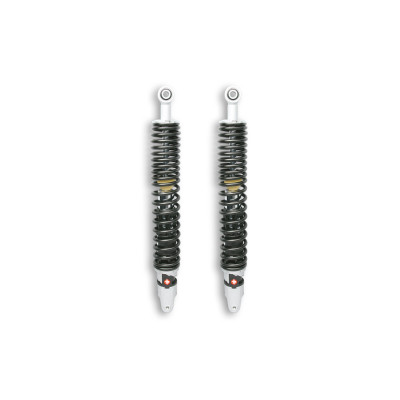

TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…
Availability: 3 In Stock
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Availability: 1 In Stock

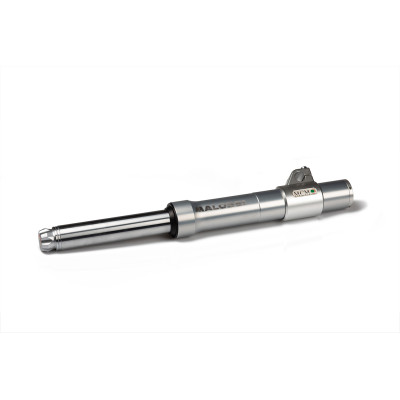

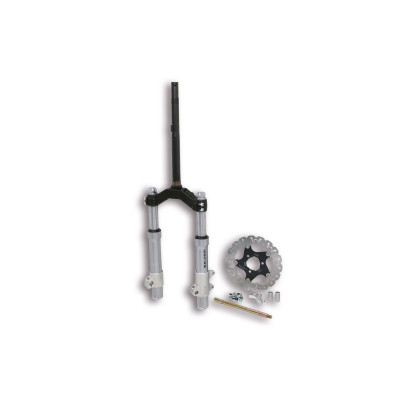

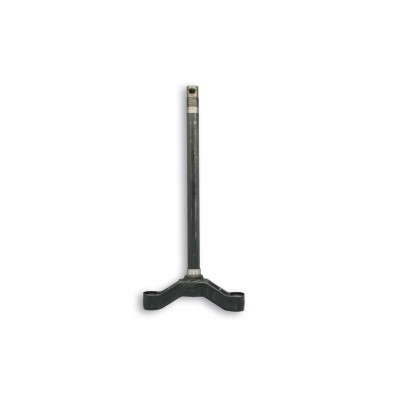

Racing forks with the highest performance This forks were studied and designed using the best technology currently available world wide in the cross racing sector. Malossi chose the most technologically advanced materials, thus producing stems in Anticorodal , a special aluminium alloy, and machining them from the solid. Fork tubes have a larger diameter and they have been lapped with chromium coating. The F37R front forks are machined entirely from the solid in order to obtain the shape and structural strength required to withstand the elevated loads applied during competition. Technical…
Availability: 1 In Stock

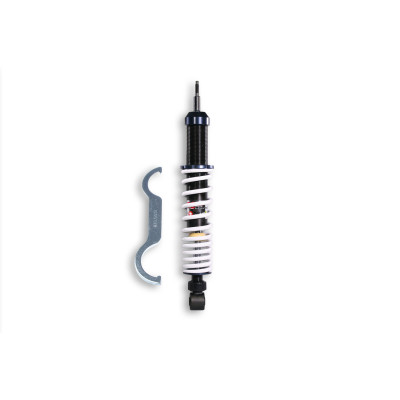

This range of shock absorbers was born thanks to our firm’s desire to offer their customers a range of products of superior class, capable of granting great riding comfort coupled with matchless driving safety. The technical characteristics of these special shock absorbers demonstrate they are the most technically advanced on the market today. Oil-gas shock absorber with adjustable spring preload.
