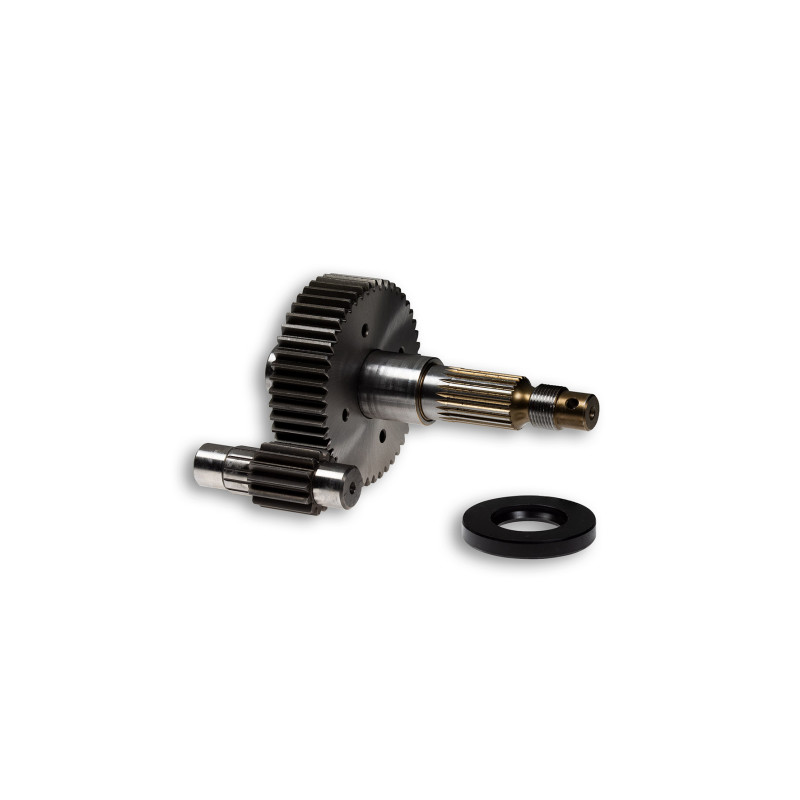

MALOSSI - % OVERS.SECT. SEC.GEARSz 13/48 with SPR .DRIVES
67 9940
€347.01
€294.96
Save 15%
Handling 4-5 days
SPRING DRIVES Malossi S.r.l. is happy to introduce its customers to a new product that stems from the need that has arisen in national scooter cross competitions to be able to resolve the problem of breakage to original components of the end gear reduction unit on scooters used in top-level competitions. Malossi engineers have succeeded in producing a sophisticated wheel shaft incorporating a shock-absorption system that basically filters all stress transmitted from the wheel to the engine. The Malossi spring drive includes a system of elastic components with excellent strength and…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
SPRING DRIVES
Malossi S.r.l. is happy to introduce its customers to a new product that stems from the need that has arisen in national scooter cross competitions to be able to resolve the problem of breakage to original components of the end gear reduction unit on scooters used in top-level competitions.
Malossi engineers have succeeded in producing a sophisticated wheel shaft incorporating a shock-absorption system that basically filters all stress transmitted from the wheel to the engine. The Malossi spring drive includes a system of elastic components with excellent strength and deformability capable of absorbing the striking energy transmitted by the wheel and returning it gradually, thus keeping all components of the final reduction system of the automatic transmission free from the huge impact stress that could quickly lead to breakage.
All components of the spring drive system are constructed from top-quality materials, such as alloy steel used in space applications, top-level finish and plastic materials offering excellent energy absorption.
In addition, the Malossi spring drive provides unquestionable improvement in running performance, even on road machines since it reduces the transmission of vibration to the crankcase and therefore to the scooter itself, thus guaranteeing exceptional smoothness in running even on city roads that are becoming increasingly disjointed. In the meantime, they protect all of your scooter's transmission components from stress caused by the roadbed, ensuring almost unlimited life for the gears of your scooter's end reduction unit.
Technical specifications
- Wheel shaft Alloy steel subjected to 5 different heat treatments
- Gear wheel Casehardening alloy steel produced on special NC machines
- Elastomers specially-formulated with excellent strength and energy absorption
- Transmission shaft Casehardening alloy steel produced on NC machines
- Toothing Designed and manufactured for maximum wear resistance with top-level surface finish
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (5 vehicles)
Gilera(2)
- STORM 50 2T
- TYPHOON 50 2T
Piaggio(3)
- NRG 50 2T LC
- NRG MC2 50 2T LC ←1997
- NTT 50 2T LC
67 9940
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Gilera
Piaggio - Vehicle
- Gilera STORM 50 2T
Gilera TYPHOON 50 2T
Piaggio NRG 50 2T LC
Piaggio NRG MC2 50 2T LC ←1997
Piaggio NTT 50 2T LC
