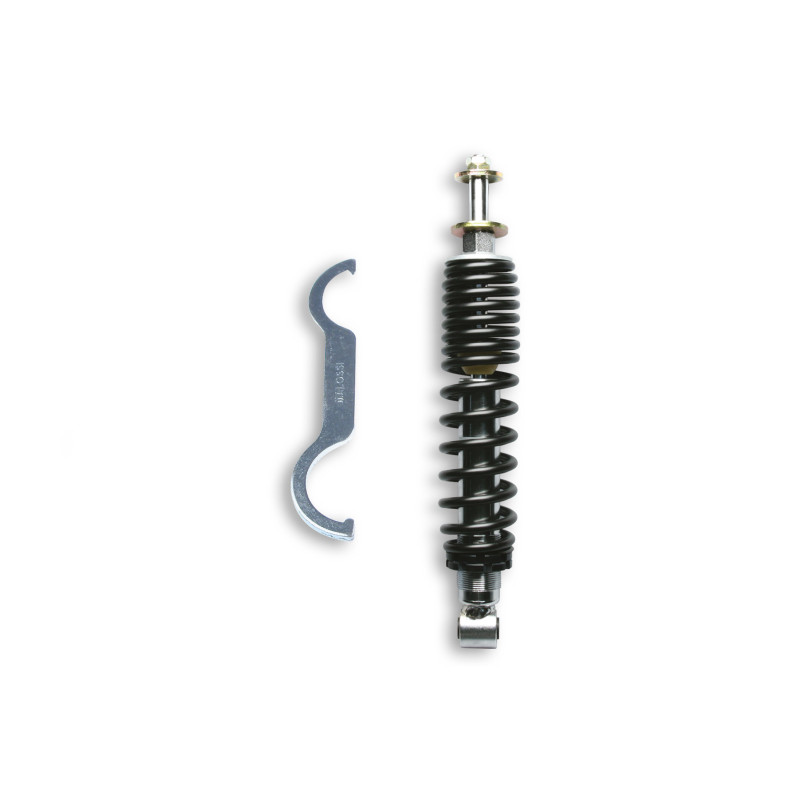

MALOSSI - % TWINS REAR shock absorber - wheelbase 290 mm
4613315
€144.00
€122.40
Save 15%
Handling 4-5 days
TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
TWINS MAXI SUSPENSIONS
COMFORT & SAFETYThe original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road.
And yes, they’re adjustable. Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style.
Technical data
- Type: oil-pneumatic
- Use: road
- Shock absorber rod d. 12mm in C43 steel-hardened and tempered
- Piston in steel and sintered bronze
- New laminar system in Swedish steel
- LUBRIFLON-PTFE B70 piston guide shoe (bronze-loaded modified compound)
- Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped lowcarbon steel with subsequent impregnation and coating with a PTFE + FB mixture)
- SEALTHANE 9345 grade polyester resin scraper ring
- Regulation of spring preloading by means of ring nut with 4 positions
- Special low-viscosity oil, pratically unaffected by temperature changes
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (24 vehicles)
Piaggio(17)
- LIBERTY - LIBERTY LE 125 4T euro 1-2 (LEADER)
- LIBERTY - LIBERTY LE 150 4T euro 1-2 (LEADER)
- LIBERTY - LIBERTY S 200 4T euro 3 (LEADER)
- LIBERTY 125 4T euro 3 (LEADER M389M)
- LIBERTY 150 4T euro 3 2009→2013 (LEADER M672M)
- LIBERTY 3V 125 ie 4T euro 3
- LIBERTY 3V 150 ie 4T euro 3 (M738M)
- LIBERTY S 125 4T euro 3 (LEADER M381M)
- LIBERTY S iGet 125 ie 4T euro 4 2017→2020
- LIBERTY S iGet 125 ie 4T euro 5 2021→ (MD41M)
- LIBERTY S iGet 150 ie 4T euro 4 2017→2020
- LIBERTY iGet 125 ie 4T euro 4 2017→2020
- LIBERTY iGet 125 ie 4T euro 5 2021→ (MD41M)
- LIBERTY iGet 150 ie 4T euro 4 2017→2020
- LIBERTY iGet 150 ie 4T euro 5 2021→ (MD42M)
- LIBERTY iGet ABS 125 ie 4T euro 3 (M893M)
- LIBERTY iGet ABS 150 ie 4T euro 3
Vespa(7)
- LX 125 4T euro 2 2006→2007 (LEADER M441M)
- LX 125 ie 4T euro 3 2007→2011 (LEADER M443M)
- LX 150 4T (LEADER)
- LX 150 ie 4T euro 3 (LEADER)
- LX 3V 125 ie 4T euro 3 2012→ (M687M)
- LX 3V 150 ie 4T euro 3 2012→ (M688M)
- LXV 125 ie 4T euro 3 (LEADER)
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4613315
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Piaggio
Vespa - Vehicle
- Piaggio LIBERTY - LIBERTY LE 125 4T euro 1-2 (LEADER)
Piaggio LIBERTY - LIBERTY LE 150 4T euro 1-2 (LEADER)
Piaggio LIBERTY - LIBERTY S 200 4T euro 3 (LEADER)
Piaggio LIBERTY 3V 125 ie 4T euro 3
Piaggio LIBERTY 3V 150 ie 4T euro 3 (M738M)
Piaggio LIBERTY 125 4T euro 3 (LEADER M389M)
Piaggio LIBERTY 150 4T euro 3 2009→2013 (LEADER M672M)
Piaggio LIBERTY S 125 4T euro 3 (LEADER M381M)
Piaggio LIBERTY S iGet 125 ie 4T euro 4 2017→2020
Piaggio LIBERTY S iGet 125 ie 4T euro 5 2021→ (MD41M)
Piaggio LIBERTY S iGet 150 ie 4T euro 4 2017→2020
Piaggio LIBERTY iGet 125 ie 4T euro 4 2017→2020
Piaggio LIBERTY iGet 125 ie 4T euro 5 2021→ (MD41M)
Piaggio LIBERTY iGet 150 ie 4T euro 4 2017→2020
Piaggio LIBERTY iGet 150 ie 4T euro 5 2021→ (MD42M)
Piaggio LIBERTY iGet ABS 125 ie 4T euro 3 (M893M)
Piaggio LIBERTY iGet ABS 150 ie 4T euro 3
Vespa LX 3V 125 ie 4T euro 3 2012→ (M687M)
Vespa LX 3V 150 ie 4T euro 3 2012→ (M688M)
Vespa LX 125 4T euro 2 2006→2007 (LEADER M441M)
Vespa LX 125 ie 4T euro 3 2007→2011 (LEADER M443M)
Vespa LX 150 4T (LEADER)
Vespa LX 150 ie 4T euro 3 (LEADER)
Vespa LXV 125 ie 4T euro 3 (LEADER)
