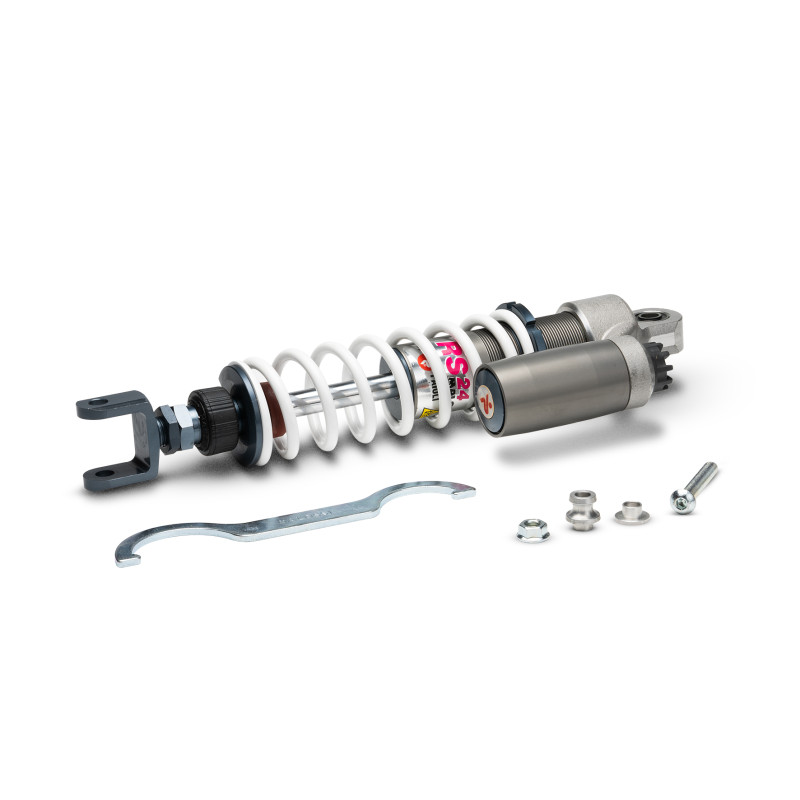

MALOSSI - Rear shock absorber rs24/10
4614223
€430.00
€365.50
Save 15%
Handling 4-5 days
This superlative, compact and very light rear shock absorber, completely manufactured in ergal, with the exception of stem and spring, was born out of the cooperation between Malossi designers and Paioli. A real oil-gas suspension with variable setting and extension/compression adjusting, compensated for a pressurized nitrogen chamber . The project has been studied for long by the technicians of both companies who, already used to team work, joined their own experiences to create an innovative suspension. The versatility of this suspension turned out to be astonishing thanks to three new…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
This superlative, compact and very light rear shock absorber, completely manufactured in ergal, with the exception of stem and spring, was born out of the cooperation between Malossi designers and Paioli.
A real oil-gas suspension with variable setting and extension/compression adjusting, compensated for a pressurized nitrogen chamber.
The project has been studied for long by the technicians of both companies who, already used to team work, joined their own experiences to create an innovative suspension.
The versatility of this suspension turned out to be astonishing thanks to three new adjustment systems, which enhance its use both on the road and on tracks:
- extension adjustment in order to absorb the harshness of the ground;
- spring pre-load allows to fi t the vehicle while driving;
- system of setting variation as regards the behavior in bends.
Technical features
The technical characteristics of these special shock absorbers show that they are the better technological specifi cation that exists nowadays on the market.
- Oil-gas suspension with pressurized nitrogen chamber
- Separate surge tank which allow to increase the quantity of internal fluids
- Hydraulic Adjustment of the spring pre-load through regulation ring-nut
- Wheelbase adjusting
- Adjustment of the vehicle setting
- Stroke: art.4614223: 70 mm – art.4614245: 40 mm
- Wheelbase: art.4614223: 330 mm – art.4614245: 270 mm
- Adjustable forged connection in ergal 55 with anodic oxidation
- Connection made out of treatment in ergal 55 with anodic oxidation
NOTE: art. 4614223 is equipped with all bolts and nuts necessary to fi t both on Minarelli and Piaggio engines.
4614245: *out of production.
| Code | Inter-axis mm | |
| 4614223 | rear | 330 |
| 4614245 | rear | 270 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (16 vehicles)
Aprilia(15)
- RALLY 50 2T (MINARELLI)
- RALLY 50 2T LC (MINARELLI)
- SR (carb.) 50 2T LC 2004→ (PIAGGIO)
- SR 50 2T 1994→
- SR 50 2T ←1993
- SR DITECH GP1 50 2T LC (PIAGGIO C361M)
- SR NETSCAPER 50 2T LC (MINARELLI)
- SR R (carb.) 50 2T LC (PIAGGIO)
- SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
- SR R FACTORY 50 2T LC (PIAGGIO C361M)
- SR RACING 50 2T LC (MINARELLI)
- SR REPLICA 50 2T LC ←1999
- SR STEALTH 50 2T LC (MINARELLI)
- SR Street 50 2T LC euro 2
- SR WWW 50 2T
Suzuki(1)
- STREET MAGIC 50 2T
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4614223
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Suzuki - Vehicle
- Aprilia RALLY 50 2T (MINARELLI)
Aprilia RALLY 50 2T LC (MINARELLI)
Aprilia SR (carb.) 50 2T LC 2004→ (PIAGGIO)
Aprilia SR 50 2T 1994→
Aprilia SR 50 2T ←1993
Aprilia SR DITECH GP1 50 2T LC (PIAGGIO C361M)
Aprilia SR NETSCAPER 50 2T LC (MINARELLI)
Aprilia SR R (carb.) 50 2T LC (PIAGGIO)
Aprilia SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
Aprilia SR RACING 50 2T LC (MINARELLI)
Aprilia SR REPLICA 50 2T LC ←1999
Aprilia SR R FACTORY 50 2T LC (PIAGGIO C361M)
Aprilia SR STEALTH 50 2T LC (MINARELLI)
Aprilia SR Street 50 2T LC euro 2
Aprilia SR WWW 50 2T
Suzuki STREET MAGIC 50 2T
