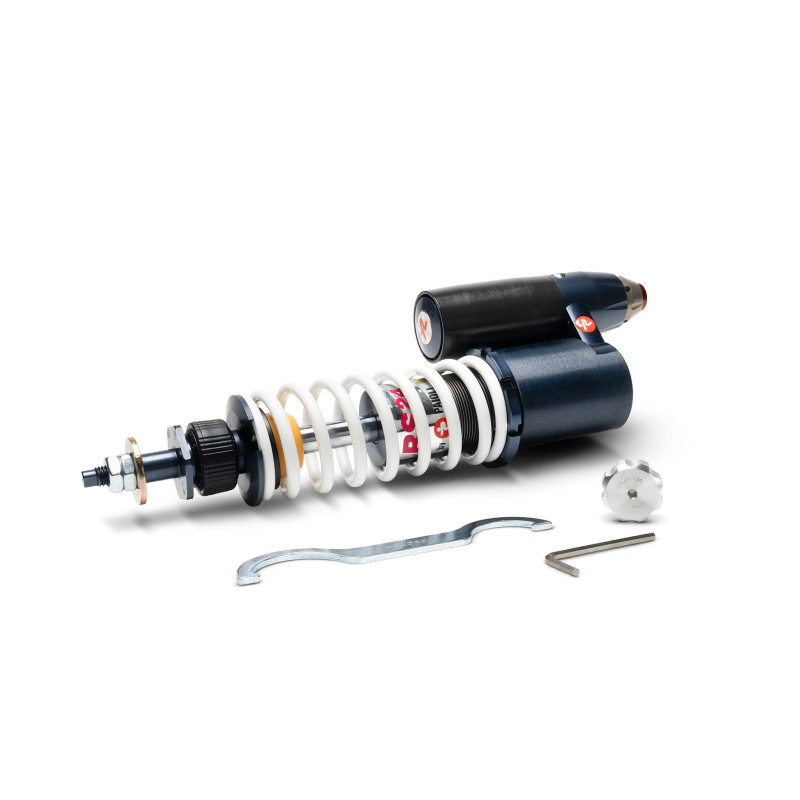

MALOSSI - FRONT SHOCK ABSORBER RS24/10-R - wheelbase 181 mm
4614236
€525.64
€446.79
Save 15%
Handling 4-5 days
This superlative, compact and very light shock absorber, completely manufactured in ergal, with the exception of stem and spring, was born out of the cooperation between Malossi designers and Paioli. A real oil-gas suspension with variable setting and extension/compression adjusting, compensated for a pressurized nitrogen chamber . The project has been studied for long by the technicians of both companies who, already used to team work, joined their own experiences to create an innovative suspension. The versatility of this suspension turned out to be astonishing thanks to three new…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
This superlative, compact and very light shock absorber, completely manufactured in ergal, with the exception of stem and spring, was born out of the cooperation between Malossi designers and Paioli.
A real oil-gas suspension with variable setting and extension/compression adjusting, compensated for a pressurized nitrogen chamber.
The project has been studied for long by the technicians of both companies who, already used to team work, joined their own experiences to create an innovative suspension.
The versatility of this suspension turned out to be astonishing thanks to three new adjustment systems, which enhance its use both on the road and on tracks:
- extension adjustment in order to absorb the harshness of the ground;
- double adjusting of hydraulic system in compression (separated according low and high speed);
- spring pre-load allows to fi t the vehicle while driving;
Technical features
The technical characteristics of these special shock absorbers show that they are the better technological specifi cation that exists nowadays on the market.
- Type: oil-pneumatic shock absorber with parted compensation tank.
- Use: Scooter for competition
- Shock absorber rod Ø 14 mm in 38 NiCrMo4UNI 7845 steel hardered and tempered with 25-30 micon hard chrome layer (mm) (surface hardness of untreated shaft HRC 55/60)
- Piston Ø 36 mm with two indipendent laminar packs (one in compression, one in expansion)
- New laminar system in music steel for extremely precise calibration
- LUBRIFLON PTFEB 70 piston guide shoe (bronze-loaded modified compound)
- Sliding on DU GUIDE bush (compound obtained by sinterization of a layer of spheroidal bronze on a strap of suitably shaped low-carbon steel with subequent impregnation and coating with a PT-FE + FB mixture)
- SEALTHANE 9345 grade polyester resin scraper ring
- Micrometric regulation of spring preloading by means of ring nuts
- Adjustment of hydraulic braking in expansion on about 24 positions
- Double adjustment of hydraulic braking in compression, to be selected on about 10 positions each, separated according low and high speed
- Special low-viscosity oil, practically unaffected by tempertaure changes
- External compensation tank which allows an increasing of the quantity of the inner liquids.If you consider the above described technical features, you can realise that these special shock absorbers are the best technological expression today available for the public
- Wheelbase: rear 333 + 25 mm - front 181 mm
- Stroke: rear 62 mm - front 45 mm
| Code | Inter-axis mm | |
| 4614236 | front | 181 |
| 4620159 | rear | 333 |
| 4620162 | pair | rear 333 + front 181 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (3 vehicles)
Piaggio(3)
- QUARTZ 50 2T LC
- ZIP SP 50 2T LC 2001→
- ZIP SP 50 2T LC ←2000
Frequently asked questions
Faq
-
Do you carry out revisions on shock absorbers?
No, but where available, you can find an overhaul kit among the shock absorber spare parts.
4614236
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Piaggio
- Vehicle
- Piaggio QUARTZ 50 2T LC
Piaggio ZIP SP 50 2T LC 2001→
Piaggio ZIP SP 50 2T LC ←2000
